DS1 to DATA SCP BLN Pump 9.2m

2023808-002
2023808-001
Patient Monitoring
GE Healthcare
Outright
Add to Wish List
Login To Shop
Login To Shop
Please select date
Second Opinion Approval Needed

Enter your approval number and submit to add item(s) to cart.

Approval Number

Please enter approval number

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.

Second Opinion Approval Needed

Select your approver's name and submit to add item(s) to your cart

Approver Name

Please Select Approver Name

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.


Features

  • Enhanced durability and reliability
  • Color coded mono plugs for more positive identification
  • Individually packed
  • compliant to IPC/WHMA A-620 standards

Product Overview

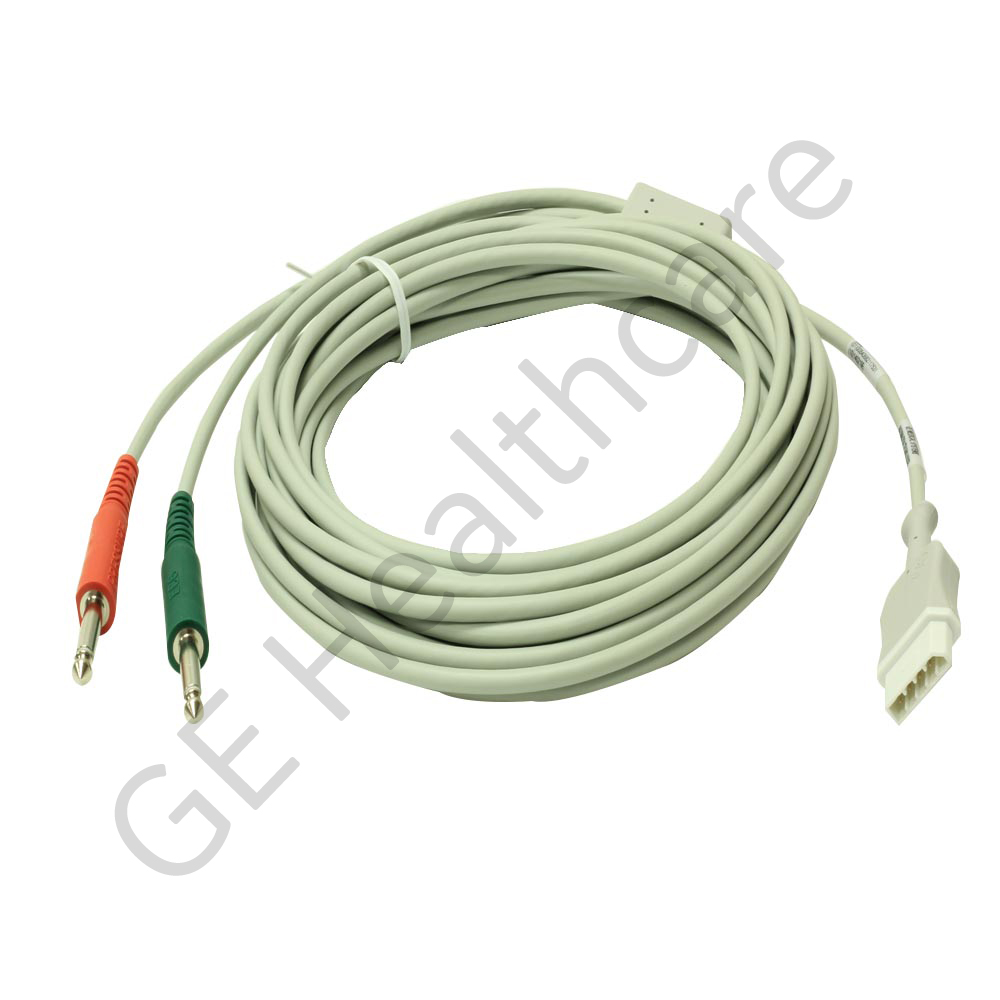

The DS1 to Datascope Balloon Pump Cable is designed for the Patient Data Module (PDM) of the patient monitoring system. The purpose of this cable is to provide ECG (Electrocardiogram) and BP (Blood Pressure) sync interface from the PDM to Datascope Intra-Aortic balloon pumps and to provide an ECG and BP sync interface from the PDM to two phone plugs. The cable uses 1/4 Inch auxiliary inputs instead of the patient cable input and has 9-pin DSI style connector (P1) and two 1/4" mono phone plugs (P2andP3). The two 1/4" mono plugs are color-coded as P2-Green for ECG and P3-Red for pressure for more positive identification. This cable provides two high level analog output signals ECG and arterial pressure from the PDM. The GE product is an innovation and technology which fits well into versatile customer needs. It is manufactured using high precision techniques which helps to achieve a good surface finish as well as good product consistency. The part is diligently designed for high performance and reliability. It is securely packaged inside a high quality packing box to avoid physical damage during transit and labeled with details about the product, Quality Assurance (QA) seal and shipment details.

Substitute Parts :

Below is more information on the equivalent parts. Parts without a hyperlink are listed for reference only and are not available for purchase online.

Equivalent partPart Details
2023808-001

Cable Assembly Ds1 to Datascp Bln Pump 9.2M
