Transformer for Aretha and Proteus 2302510

2302510
X-Ray
GE Healthcare
Outright
Add to Wish List
Login To Shop
Login To Shop
Please select date
Second Opinion Approval Needed

Enter your approval number and submit to add item(s) to cart.

Approval Number

Please enter approval number

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.

Second Opinion Approval Needed

Select your approver's name and submit to add item(s) to your cart

Approver Name

Please Select Approver Name

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.


Features

  • Compatible with UL and IEC 601-1 requirements
  • Class B insulation winding material
  • Open Frame
  • Vertical mount

Product Overview

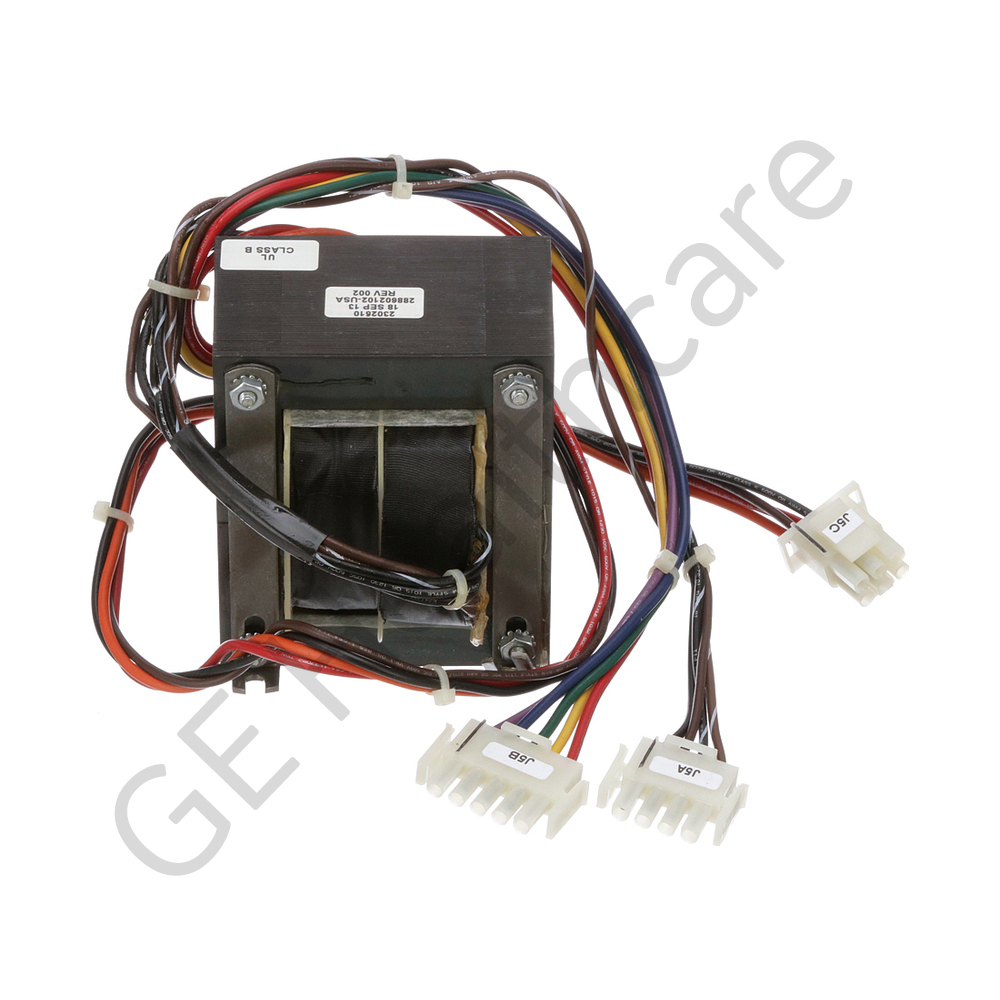

This transformer is used in power supply section of Aretha and Proteus. This is a open frame transformer which consist of two 110 VAC pimary windings (Both the primary winding will be wired in parallel for 110 VAC at 60 Hz and will be wired in series for 220 VAC at 50 Hz) and a secondary winding with 5 taps for making adjustments required due to different primary voltages. Each tap has different output voltage levels i.e. 37 VAC, 33 VAC, 31 VAC, 29 VAC and 27 VAC. This transformer assembly has three connectors for input and output connections. It is compliant with UL and IEC 601-1 requirements. This transfomer can be used with Revolution XRd.

Compatible Products

Revolution XRd

Revolution XRd
