CONNECTOR BLOCK 46-289955P1

46-289955P1
X-Ray
GE Healthcare
Outright
Add to Wish List
Login To Shop
Login To Shop
Please select date
Second Opinion Approval Needed

Enter your approval number and submit to add item(s) to cart.

Approval Number

Please enter approval number

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.

Second Opinion Approval Needed

Select your approver's name and submit to add item(s) to your cart

Approver Name

Please Select Approver Name

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.


Features

  • Strong and Lightweight Lexan (Polycarbonate) Construction
  • Good Electrical Insulation Properties
  • Good Dimensional Stability
  • With Mounting Hole

Product Overview

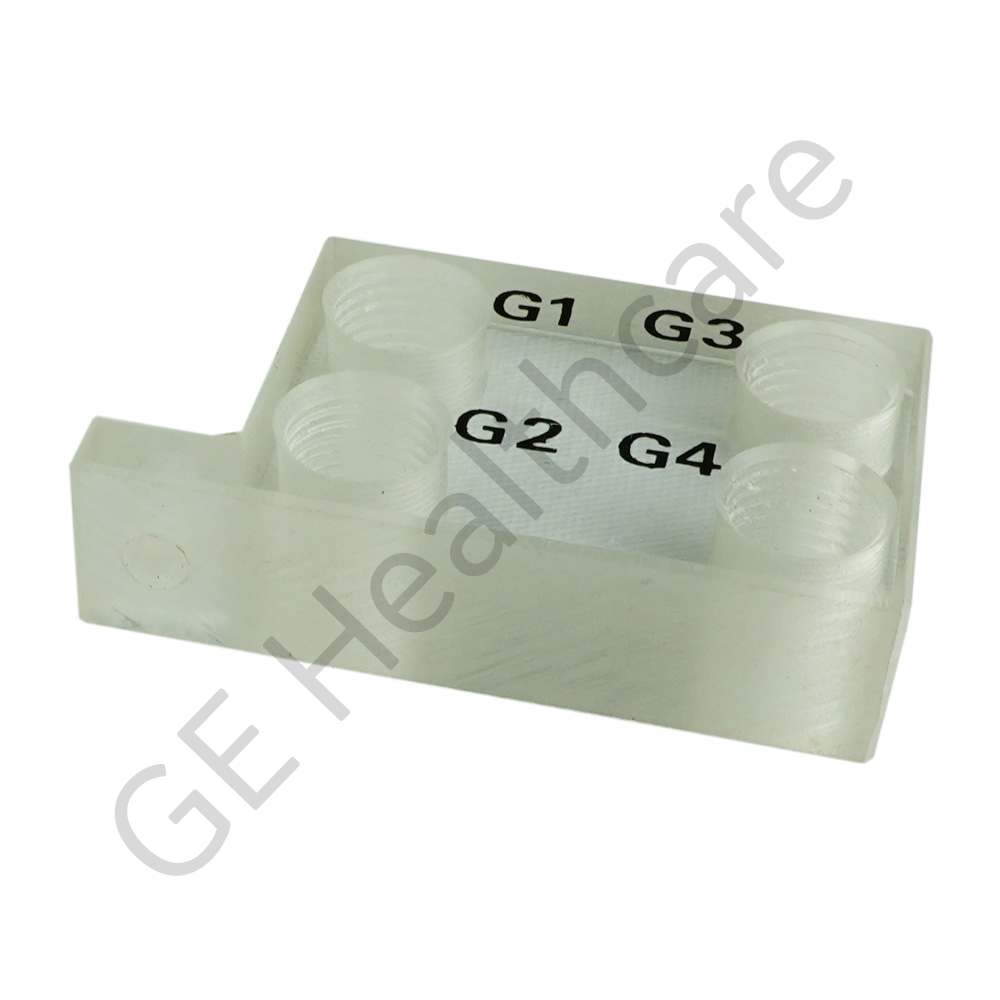

The Connector Blocks are also known as Terminal Blocks and are used to secure and/or terminate electrical wires. This connection terminal block is used for connecting grounding or high voltage electrical wiring of the non-cine grade 9 inch and 12 inch housing image tubes used with X-Ray systems. The connection block is made up of Clear Lexan Polycarbonate Material that offers high impact performance and good stiffness over a wide temperature range along with good dielectric strength for enhanced insulation. The wires can be terminated to this terminal block using the 4x threaded mounting holes which are marked with 0.12 inch high black markings for G1,G2,G3 and G4 and are spaced at 1.00 inch horizontally and 0.50 inch vertically. The connection block also has a 0.150 inch through hole at its base for mounting it on the tube housing using appropriate screw. This connection block is diligently designed to withstand high temperatures and to maintain the isolation between the wires of the X-Ray tube. This product will be shipped in suitable packaging to give adequate protection during transit.
