Trophon EPR SRVC Nebulizer Fan
5454581
Ultrasound
trophon EPR
GE Healthcare
Outright
Add to Wish List
Login To Shop
Login To Shop
Please select date
Second Opinion Approval Needed

Enter your approval number and submit to add item(s) to cart.

Approval Number

Please enter approval number

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.

Second Opinion Approval Needed

Select your approver's name and submit to add item(s) to your cart

Approver Name

Please Select Approver Name

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.


Product Overview

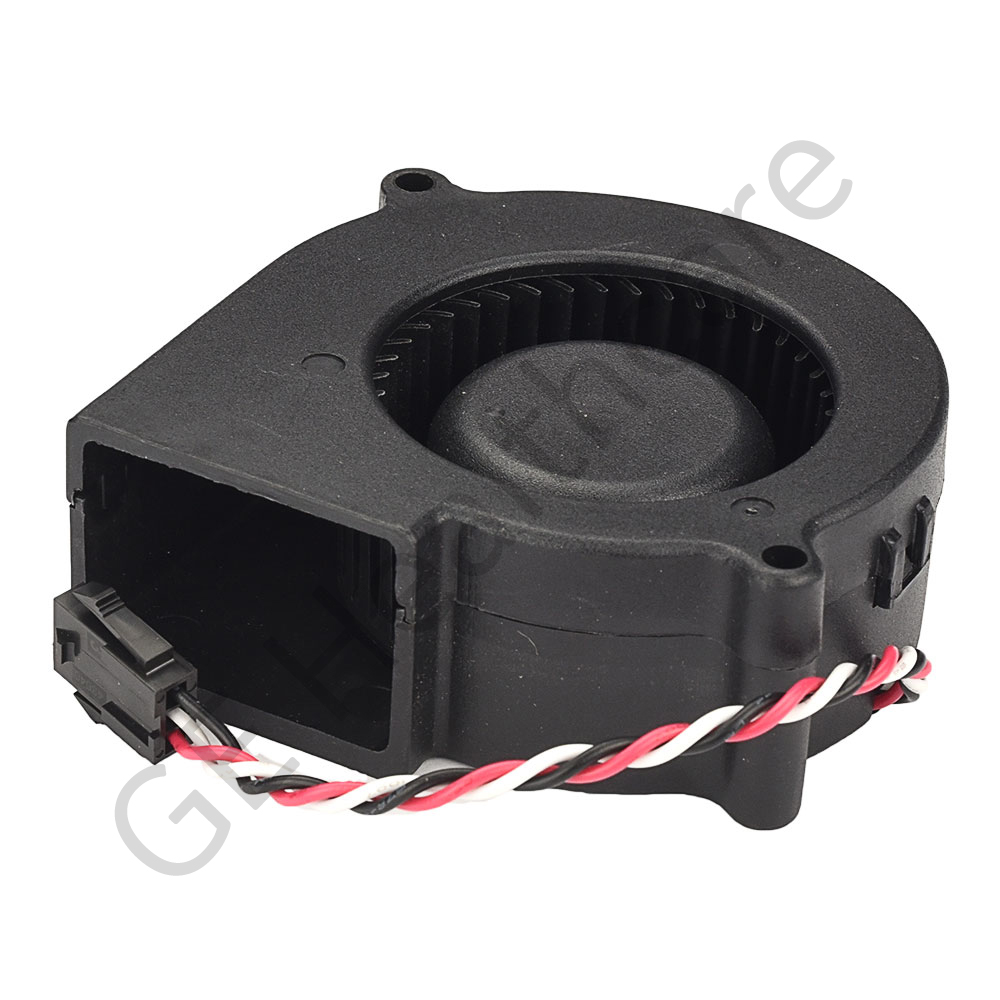

This Nebulizer DC Fan assembly includes a centrifugal type fan used for moving air in a direction at an angle to the incoming fluid. This centrifugal fans contain a ducted housing to direct outgoing air in a specific direction or across a heat sink. The fan use the kinetic energy of the impellers to increase the volume of the air stream, which in turn moves against the resistance caused by ducts, dampers and other components. Centrifugal fans displace air radially, changing the direction (typically by 90°) of the airflow. This type of fan offers sturdy, quiet and reliable operation. The use of high quality UL 94V-0 flamability rating plastic for making the housing offers very good impact resistance, toughness, heat resistance and corrosion resistance. The fan requires 12 Volts DC power supply to provides good airflow rate up to 7.8 CFM for faster air circulation and produces low noise even at 2600 RPMs. This Nebulizer fan assembly is used in the Trophon EPR System and is compatible with GE's Ultrasound systems. The Trophon EPR is the safe, versatile and simple way to prevent ultrasound probe cross-infection. This fan assembly can be mounted on a bracket on the side of the Nebulizer Assembly and use for Sterilization of the ultrasound probe by forcing the hydrogen peroxide mist through the nebulizer valve and dosage sensor and into the chamber. The fan will be shipped in suitable packaging to provide adequate protection during transit.
